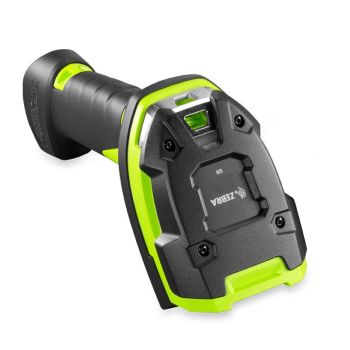

Zebra DS3678 Cordless Rugged Barcode Scanner: Specs and Buying Guide
The Zebra DS3678 is what you buy when scanners keep breaking. It is a cordless, IP67-sealed, MIL-STD-810G rated 2D imager rated for an 8 ft drop onto concrete, with Bluetooth range up to 100 metres and a battery good for around 71,000 scans between charges. Everything about it is designed around a single assumption: this device will be dropped, soaked, frozen and abused, and it still has to read the code. This guide covers the full DS3678 specification, the four scan-range variants and how to choose between them, where the rugged premium pays for itself, and what to verify before ordering.
What Makes the DS3678 Different
Most barcode scanner failures in industrial settings are not electronic. They are physical: a scanner falls off a forklift, a cable is severed by a pallet jack, condensation forms inside the housing when a unit moves between a freezer and a loading bay. The DS3678 addresses each of these directly. The cord is gone, so there is no cable to sever. The IP67 rating means the housing is sealed against dust and temporary water immersion. The 8 ft drop specification is roughly double what an office-grade scanner tolerates.
The operating temperature range of -30°C to 50°C is the specification that surprises buyers most. That range covers frozen food storage, cold-chain pharmaceutical warehousing and outdoor yard operations in a genuine winter - environments where a standard scanner's display fogs, its battery collapses and its plastics crack.
At 0.85 lbs it is heavier than a retail scanner, which is a deliberate consequence of the sealing and internal shock mounting. In practice operators wearing gloves prefer the extra bulk, because it is easier to grip and harder to fumble.
Zebra DS3678 Full Specifications
| Part Number | DS3678 |
| Manufacturer | Zebra |
| Scanner Type | Handheld Cordless Rugged |
| Imaging Technology | 2D Area Imaging |
| Scan Range Variants | SR, HP, ER, DPM |
| Symbologies | 1D, 2D, PDF417, QR Code, Data Matrix, DPM |
| Wireless Standard | Bluetooth 4.0 |
| Wireless Range | Up to 100 metres (line-of-sight) |
| Battery | 3,100 mAh Li-Ion, up to 71,000 scans |
| Base Station Connectivity | USB, RS-232 |
| Drop Resistance | 8 ft (2.4 m) to concrete |
| Environmental Rating | IP67, MIL-STD-810G |
| Operating Temperature | -30°C to 50°C |
| Weight | 0.85 lbs (scanner only) |
| Condition | Refurbished, function-tested |
| Warranty | 30-day TechSellerUSA warranty |
SR, HP, ER or DPM: Choosing the Right Variant
The DS3678 exists in four optical configurations, and this is the decision that determines whether the deployment succeeds. Getting it wrong is expensive, because the optics are not field-changeable.
SR - Standard Range
The general-purpose option, reading from contact out to a few feet. Correct for receiving desks, pick stations, packing benches and most general warehouse handling where the operator is close to the label.
HP - High Performance
Optimised for a wider working range than SR while retaining close-in reading, useful where operators scan both small parts labels and cartons on a shelf above head height without changing devices.
ER - Extended Range
The variant for racking. ER optics read pallet and location labels at considerable distance, which is what a forklift operator needs to scan a bay label three levels up without leaving the seat. If your application involves high racking, this is not an upgrade, it is a requirement.
DPM - Direct Part Mark
DPM reads codes etched, dot-peened or laser-marked directly onto metal and plastic, where there is no printed label at all. Automotive, aerospace, electronics and medical device manufacturing rely on it for component traceability. DPM codes defeat ordinary imagers entirely because there is no ink contrast to work with.
SKU: DS3678 | Refurbished & function-tested | 30-day warranty
View Details & Request a Quote →Where the Rugged Premium Pays Back
The DS3678 costs more than an entry-level scanner, and the case for it is straightforward arithmetic. In a distribution centre, a broken scanner does not merely cost a replacement unit - it costs the pick station's output until a spare is found, plus the administrative time to process the failure. If a cheaper scanner is replaced twice a year and the rugged unit lasts five, the rugged unit is dramatically cheaper before you count a single hour of downtime.
The 100 metre Bluetooth range changes workflow rather than just removing a cable. An operator can leave the base station at the terminal and walk an entire aisle, scanning as they go, with data still landing in the WMS in real time. Batch mode extends this further: the scanner stores scans when out of range and uploads them on reconnection, so yard checks and remote stock counts do not require a terminal nearby.
The battery specification of up to 71,000 scans matters for three-shift operations, because it usually means one charge covers more than a full shift with margin. Scanners that need mid-shift charging create a second problem: charging cradles, spare batteries and a process for swapping them.
DS3678 vs DS2208: The Honest Comparison
The Zebra DS2208 and the DS3678 are not really competitors - they solve different problems. The DS2208 is corded, light, inexpensive and built for a counter. The DS3678 is cordless, sealed, rugged and built for a warehouse floor.
Use this test. If the scanner will stay within a cable's length of a terminal, indoors, at room temperature, buy the DS2208 and buy more of them. If it will be carried, dropped, taken into a freezer, used outdoors, or needs to read a label further away than arm's length, buy the DS3678. Deploying DS2208 units into a rugged environment to save money is the single most common purchasing mistake in this category, and the replacement rate erases the saving within months.
Many operations run both, and that is usually correct: DS2208 at receiving desks and offices, DS3678 on the floor and in the yard. Pair them with a TC53 mobile computer where operators need a full application rather than just a scan.
Buying the DS3678 from TechSellerUSA
We supply the Zebra DS3678 in refurbished, function-tested condition with a 30-day warranty, as single units or in volume. Because the scan-range variant cannot be changed later, we recommend confirming your application before ordering - our team can help match SR, HP, ER or DPM optics to your racking height and label types. Browse the full Zebra range or our wider printers and scanners category.
Frequently Asked Questions
Can the Zebra DS3678 be used in a freezer?
Yes. The DS3678 operates from -30°C to 50°C and carries an IP67 seal, which covers frozen food storage, cold-chain pharmaceutical warehousing and outdoor yard work. Standard office-grade scanners fail quickly in these conditions.
How far can the DS3678 work from its base station?
Bluetooth range extends up to 100 metres line-of-sight. Real-world range is shorter in racked warehouses because of obstruction, but batch mode lets the scanner store scans out of range and upload them automatically on reconnection.
What is the difference between the SR, HP, ER and DPM variants?
SR is standard range for close work, HP covers a wider working range, ER is extended range for reading high rack and pallet labels from a forklift, and DPM reads codes etched or dot-peened directly onto metal and plastic. The optics are not field-changeable, so the variant must be chosen correctly at purchase.
How long does the DS3678 battery last?
The 3,100 mAh Li-Ion battery is rated for up to 71,000 scans, which for most operations covers more than a full shift with margin and removes the need for mid-shift charging or spare battery handling.
Is a refurbished DS3678 reliable for industrial use?
Yes. The DS3678 is built around a sealed rugged housing that does not degrade the way office-grade plastics do, and every unit we supply is function-tested before dispatch and covered by a 30-day warranty.
Not sure which scan-range variant your racking needs? Request a quote on the Zebra DS3678 and our team will help you specify it correctly within the hour.
