Zebra ZT411 (ZT41142-T01000) Industrial Label Printer: Specs, Setup and Buying Guide

If your warehouse, distribution centre or manufacturing line runs thousands of labels a shift, the Zebra ZT411 (ZT41142-T01000) is one of the most dependable 4-inch industrial thermal label printers you can put on the floor. It pairs a metal frame, a 203 dpi printhead and print speeds up to 14 inches per second with Zebra's Print DNA software suite, which is why it has become the default replacement for ageing ZM400 and ZT410 units across US logistics operations. This guide walks through the full ZT41142-T01000 specification, the workloads it handles best, how it compares to the ZT421 and ZD421, what printhead maintenance actually costs you, and what to check before buying a refurbished Zebra ZT411 for a production environment.

What Is the Zebra ZT411 (ZT41142-T01000)?

The ZT41142-T01000 is a specific configuration within Zebra's industrial printer range: a ZT411 chassis with a 4-inch print width, 203 dpi resolution, thermal transfer and direct thermal capability, and a standard connectivity bundle of USB 2.0, Serial and 10/100 Ethernet. The ZT400 series sits between Zebra's desktop printers and its heavy-duty ZT600 line, and the ZT411 is the volume seller in that series because it covers roughly 80 percent of industrial labelling jobs without the price of a ZT620.

Physically, the ZT411 is a bi-fold metal-framed unit weighing around 20 lbs, with a colour touch display, a large clear media window and a side-loading design that lets an operator swap a ribbon or a roll without pulling the printer off the shelf. That last detail matters more than spec sheets suggest: in a three-shift operation, a printer that takes 40 seconds to reload instead of three minutes gives back real hours across a year.

Zebra positions the ZT411 as a drop-in upgrade path for the older ZM400 and Stripe S4M, and it ships with ZPL and EPL emulation precisely so that existing label formats keep working. If your WMS already generates ZPL for a ten-year-old Zebra unit, the ZT41142-T01000 will print those formats unchanged.

ZT41142-T01000 Full Specifications

Key Features That Matter on the Warehouse Floor

Metal construction and a genuine duty cycle

The ZT411 uses a die-cast metal frame and metal media cover rather than the moulded plastic of desktop units. In practice that means it survives being knocked by a pallet jack, tolerates dust and vibration near a conveyor, and holds printhead alignment over tens of thousands of labels. Desktop printers pressed into industrial duty typically start producing skewed or faded barcodes within months; the ZT411 is rated for the workload from day one.

14 inches per second at 203 dpi

Throughput is the reason most buyers choose the ZT41142-T01000 over a lower-resolution or slower model. At 14 in/sec, a standard 4x6 shipping label clears the printer in well under a second, which keeps a pack station from becoming the bottleneck during a peak shift. Higher-resolution ZT411 variants print more finely but more slowly, which is the core trade-off covered further down.

Colour display and Print DNA

The ZT411's colour touch interface removes most of the guesswork from calibration, media type selection and network setup. Behind it, Zebra's Print DNA suite adds remote device management, firmware mirroring and printer profile cloning, so an IT team can push an identical configuration to twenty units across three sites instead of walking each one through setup by hand.

Who the Zebra ZT411 Is Built For

Warehousing and distribution

Carton labels, pallet placards, pick-and-pass labels and GS1-128 compliance labels are the ZT411's core diet. A single unit typically covers a pack station or a staging lane, and the Ethernet port means it drops straight into a WMS print queue without a dedicated PC.

Manufacturing and work-in-progress tracking

On production lines, the ZT411 handles WIP travellers, component identification and finished-goods labelling. Resin ribbons paired with synthetic label stock produce marks that survive oils, solvents and heat, which is why the printer shows up frequently in automotive and electronics plants.

Healthcare and laboratory labelling

Specimen labels, wristbands and pharmacy labels all fall inside the ZT411's media range. For very small text or 2D codes on tiny vials, a 300 dpi ZT411 variant is usually the better fit than the 203 dpi ZT41142-T01000.

Third-party logistics and transportation

3PL operations that print for multiple clients benefit from the ZT411's memory headroom, which holds many stored label formats on the device, plus its ability to accept ZPL from mixed host systems without reformatting every client's template.

IN STOCK · TESTED · 218 SOLD

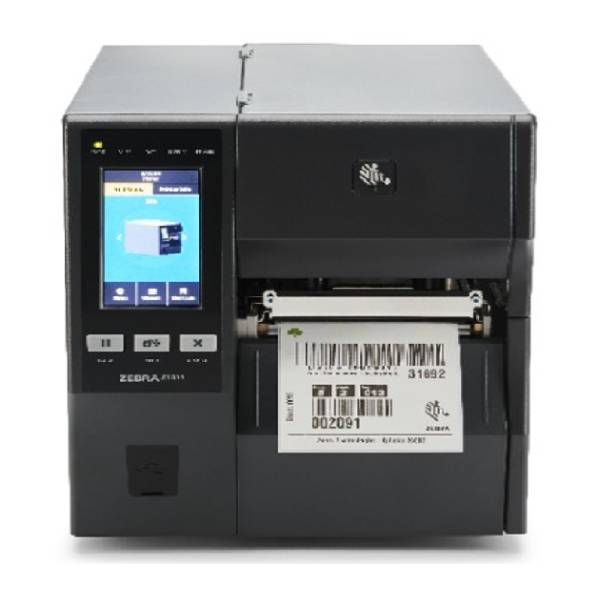

ZT41142-T01000 – Zebra ZT411 4in 203dpi Industrial Thermal Label Printer

SKU: ZT41142-T01000  |  Refurbished & function-tested  |  30-day warranty  |  Single units or volume orders

View Details & Request a Quote →

203 dpi vs 300 dpi vs 600 dpi: Which ZT411 Do You Need?

Zebra builds the ZT411 in three printhead resolutions, and choosing wrongly is the most common and most expensive mistake buyers make.

203 dpi, as fitted to the ZT41142-T01000, is the right answer for the large majority of shipping, carton, pallet and inventory labels. Standard 1D barcodes, human-readable text down to about 6 pt and typical GS1-128 compliance labels all scan reliably at this density, and you get the fastest print speeds in the family.

300 dpi becomes necessary when you are printing small 2D codes, dense Data Matrix marks, tiny component labels or fine graphics such as regulatory logos. The speed penalty is real but the readability gain is decisive for small-format labels.

600 dpi is a specialist choice, used for electronics component marking and laboratory labels where a Data Matrix code must fit inside a few millimetres. If you are not already sure you need 600 dpi, you almost certainly do not.

One practical rule: if your smallest barcode X-dimension is 10 mil or wider, 203 dpi is sufficient. Below that, move to 300 dpi.

Zebra ZT411 vs ZT421 vs ZD421

These three model numbers look almost identical and are frequently confused on purchase orders.

The ZT411 is the 4-inch industrial unit described here. The ZT421 is its 6-inch sibling, sharing the same chassis architecture and firmware but accommodating wider media for large pallet placards, drum labels and oversized compliance labels. If nothing you print exceeds 4 inches wide, the ZT421 is simply extra cost and extra footprint.

The ZD421, by contrast, is a desktop printer. It shares the numeric pattern but not the class: plastic housing, lower duty cycle, slower print speed and smaller media capacity. It suits a retail backroom, a clinic reception or a small office shipping desk. Putting a ZD421 on a distribution line is the single most common cause of the premature printhead failures and skewed labels we see in returned units. You can compare both alongside the rest of our printers and scanners range before deciding.

Connectivity, ZPL and WMS Integration

The ZT41142-T01000 ships with USB 2.0, Serial and 10/100 Ethernet as standard. For most deployments Ethernet is the one that matters: it lets the printer sit on the network with a static IP and receive jobs directly from an ERP, WMS or middleware print server with no attached workstation.

On the language side, the printer speaks ZPL, ZPL II, EPL and XML. ZPL II is the workhorse and is natively generated by SAP, Oracle WMS, Manhattan, NetSuite, BarTender and Loftware, among others. EPL support exists mainly so legacy Eltron-era formats continue to print during a migration. XML-enabled printing lets you push data directly from an ERP without an intermediate label-formatting layer, which some enterprise teams use to simplify their print architecture considerably.

With 256MB Flash and 512MB DRAM, the ZT411 can store a substantial library of label formats, fonts and graphics on-device, so a network hiccup does not stop production mid-shift.

Media and Ribbon Compatibility

The ZT411 accepts media up to 4.5 inches wide and prints up to 4.09 inches, covering labels, tags, wristbands and receipt stock. It handles roll media, fanfold stock and both continuous and gap/notch label formats.

Ribbon choice is where print durability is decided. Wax ribbons are the cheapest option and suit paper labels in dry indoor environments such as standard carton and shipping labels. Wax/resin handles light abrasion and moisture, making it the sensible default for labels that travel through a supply chain. Resin ribbons bond to synthetic materials and resist heat, chemicals and prolonged outdoor exposure, which is what you need for asset tags, chemical drum labels and automotive components.

Matching ribbon to label substrate matters as much as matching it to the environment. Resin ribbon on uncoated paper, for example, produces a poor bond and wastes an expensive consumable.

Maintenance and Printhead Replacement

The printhead is the single wear item that determines total cost of ownership. A ZT411 printhead typically delivers somewhere around one million linear inches of printing, but abrasive synthetic media, excessive darkness settings and skipped cleaning all shorten that considerably.

Three habits extend printhead life more than anything else. First, clean the printhead with isopropyl alcohol at every ribbon change rather than only when print quality visibly degrades. Second, run the darkness setting as low as your barcode verifier will accept; every extra degree of heat is wear. Third, keep the platen roller clean, since adhesive build-up there creates uneven pressure that damages the printhead unevenly.

When replacement is due, the correct part depends on resolution: P1058930-009 for 203 dpi, P1058930-010 for 300 dpi and P1058930-011 for 600 dpi. Because the ZT41142-T01000 is a 203 dpi unit, P1058930-009 is the one to keep on the shelf as a spare. Ordering a spare printhead alongside the printer is standard practice for any single-printer operation, since a failed head with no replacement on hand halts shipping entirely.

Buying a Refurbished Zebra ZT411 from TechSellerUSA

New ZT411 units carry a substantial premium, and lead times on Zebra industrial printers have been unpredictable. A properly refurbished unit closes most of that gap: the metal chassis does not age the way plastic does, and the consumable wear items are exactly the parts that get inspected and replaced during refurbishment.

Every ZT41142-T01000 we supply is function-tested before shipment, arrives with our 30-day warranty and is available as a single unit or in volume for multi-site rollouts. We work with procurement teams across warehousing, manufacturing, healthcare, government and universities, and quotes for purchase orders and net terms are handled directly rather than through a generic checkout. Browse the full Zebra printer and scanner range or request pricing on the ZT411 below.

Frequently Asked Questions

Need pricing, a volume quote or help confirming that the ZT41142-T01000 is the right resolution for your label formats? Request a quote on the Zebra ZT411 and our team will respond within one hour during business hours.
