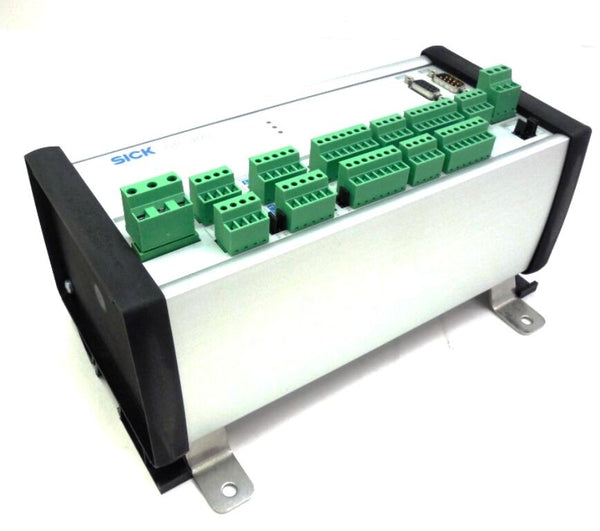

OTC400-0000 - Sick OTC400 Omni Tracking Controller

Product Overview

The Sick OTC400 is an omni tracking controller that coordinates a multi-scanner barcode reading station on a conveyor line. It gathers the read results from the individual scanners in an omni portal system, tracks each object as it travels, and sends one consolidated result to the host at a defined output point. Tech Seller USA supplies this part in verified new condition, for single units or volume orders.

Key Specifications

The controller supports up to 24 connected barcode scanners reading on as many as six planes, with the scanners attached over CAN bus. Host communication is available over RS-232 and RS-422/485, with a 9-pin D-Sub auxiliary port for configuration and diagnostics. It provides three trigger inputs, eleven configurable sensor inputs, four switching outputs plus a relay output, and runs on 24V DC, drawing about 20W with a single scanner and up to about 120W with eight.

What's Included / Condition

Each OTC400-0000 ships in new condition, function-tested prior to shipment, and covered by our standard 30-day warranty. For same-day dispatch, contact Sarah Jane at sarah.jane@techsellerusa.com.

Compatibility & Use Case

Deployed in parcel and postal sortation, warehouse conveyor systems, airport baggage handling, and distribution center material flow where codes must be read on multiple sides of a moving object. Connects to Sick barcode scanners over CAN bus and to the line host or PLC over serial interfaces, with incremental encoders and trigger photoelectric sensors providing object tracking and read pulses. Consolidating results from up to six reading planes means the host receives a single record per object.
