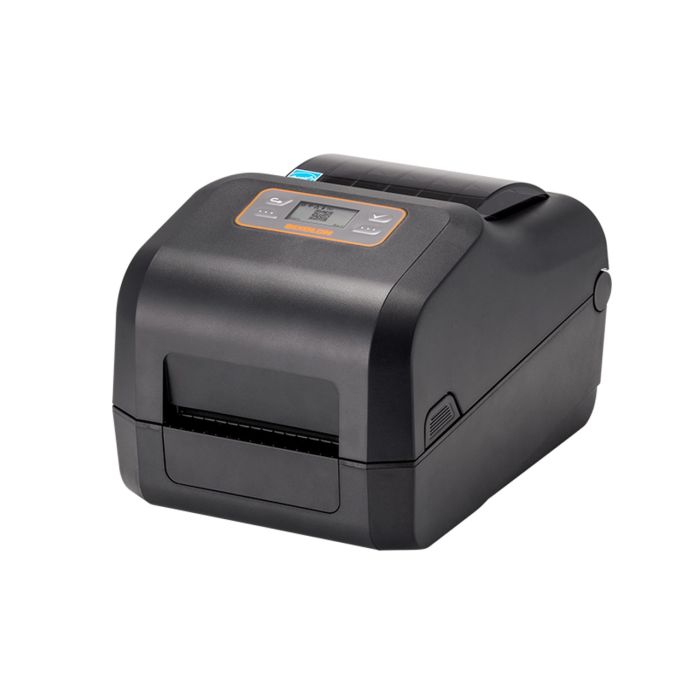

Bixolon XD5-40t Industrial Label Printer: Specs and Buying Guide
Here is the situation that sells most Bixolon XD5-40t printers. A warehouse has run Zebra industrial units for years. Half of them are ageing, budget is tight, and the label formats are all written in ZPL. Replacing like for like is expensive. Replacing with a cheaper brand normally means rewriting every label template, which nobody has time for.
The XD5-40t breaks that trade-off. It is a 4-inch, 203 dpi industrial thermal transfer printer running at 7 inches per second, and it understands ZPL through emulation. Existing label formats print unchanged.
The emulation question, answered properly
Bixolon's native language is SLCS. Alongside it the XD5-40t supports BPL-Z and BPL-E, which are emulations of Zebra's ZPL and Eltron's EPL respectively.
What that means in practice: a WMS, ERP or label design tool already generating ZPL for a Zebra printer sends the same data stream to an XD5-40t and gets the same label. No template rewriting, no middleware, no development ticket. For a mixed fleet this also means one label format library serves both brands.
Emulation is not always perfect on exotic commands, so the sensible approach is to test your most complex label - the one with the most graphics, fonts and rotated elements - before committing to a fleet swap. Standard shipping, carton and compliance labels transfer without issue in almost every case we see.
Bixolon XD5-40t specifications
| Part Number | XD5-40t |
| Manufacturer | Bixolon |
| Product Family | XD5 Industrial |
| Print Method | Thermal Transfer / Direct Thermal |
| Print Resolution | 203 dpi (8 dots/mm) |
| Print Speed | Up to 7 in/sec |
| Max Print Width | 4.09 inches (104 mm) |
| Max Media Width | 4.6 inches (118 mm) |
| Memory | 128MB Flash / 64MB SDRAM |
| Connectivity | USB, Serial, Ethernet |
| Media Types | Labels, Tags, Continuous Media |
| Ribbon Type | Wax, Wax/Resin, Resin |
| Programming | SLCS, BPL-Z (ZPL), BPL-E (EPL) |
| Weight | 6.4 lbs |
| Condition | New |
| Warranty | 30-day TechSellerUSA warranty |
Both print methods in one machine
The XD5-40t runs thermal transfer and direct thermal, and being able to switch matters more than the spec sheet suggests.
Direct thermal needs no ribbon, so consumable cost drops and there is nothing to thread. The print fades within months under heat or light. That is fine for shipping labels consumed in transit, pick labels, and anything with a short life.
Thermal transfer bonds ink from a ribbon onto the label and lasts years. Asset tags, product identification, chemical drum labels and anything going outdoors need it.
Most operations print both kinds of label. Having one machine that does both means you are not buying two printers or accepting the wrong print method for half your output.
SKU: XD5-40t | New | 30-day warranty | Single or fleet quantities
View Details & Request a Quote →Where 7 inches per second actually lands
Speed comparisons between label printers are frequently misleading, because the number only matters relative to your throughput.
At 7 in/sec the XD5-40t clears a standard 4x6 shipping label in well under a second. A pack station producing a few hundred labels a shift will never notice a constraint. A high-volume distribution centre running continuously through three shifts is a different case, and there a faster industrial unit such as the Zebra ZT411 at 14 in/sec has genuine headroom.
The 128MB Flash and 64MB SDRAM matter alongside speed. That capacity holds a substantial library of stored label formats, fonts and graphics on the device itself, so a brief network interruption does not halt labelling mid-shift.
Media handling and ribbon selection
Media up to 4.6 inches wide with a 4.09 inch printable area covers labels, tags and continuous stock. The gap between media width and print width exists to accommodate liner margins, and it catches people out - design your artwork against 4.09 inches, not 4.6.
On ribbons: wax is cheapest and correct for paper labels indoors. Wax/resin resists handling abrasion and moisture, which is the sensible default for anything travelling through a supply chain. Resin bonds to synthetic stock and survives heat, chemicals and outdoor exposure.
Matching ribbon to substrate matters as much as matching it to environment. Resin on uncoated paper bonds poorly and wastes an expensive consumable.
Sourcing and volume orders
We stock the XD5-40t new with a 30-day warranty, available singly or in fleet quantities for multi-site deployments. If you are evaluating it as a Zebra replacement, send us your most complex label format and we can advise on emulation compatibility before you commit. Our wider Bixolon printer range and full printers and scanners catalogue are both online.
Common questions
Will the XD5-40t print my existing Zebra ZPL labels?
In almost all cases yes. BPL-Z is a ZPL emulation, so a system already generating ZPL sends the same data stream and gets the same label with no template rewriting. Test your most complex format first, since exotic commands occasionally behave differently.
What is SLCS?
SLCS is Bixolon's native printer command language. You only need it if you are developing label output from scratch. Most buyers use the ZPL or EPL emulation instead because their existing systems already speak those.
Can it print without a ribbon?
Yes, in direct thermal mode. That removes the ribbon consumable entirely, at the cost of print life - direct thermal fades within months under heat or light. Use thermal transfer with a ribbon for asset tags and anything needing to last.
Why is the media width wider than the print width?
It accepts media up to 4.6 inches but prints up to 4.09 inches, the difference allowing for liner margins on label stock. Design artwork against 4.09 inches - a label expecting edge-to-edge printing across 4.6 inches will not work.
Is 7 in/sec fast enough for a distribution centre?
For a pack station or staging lane producing a few hundred labels a shift, comfortably. For continuous three-shift high-volume labelling, an industrial unit rated at 14 in/sec gives more headroom and a heavier duty cycle.
XD5-40t or the desktop XD3-40t?
The XD5 is the industrial model at 6.4 lbs and 7 in/sec with double the SDRAM. The XD3 is a 3.5 lb desktop unit at 5 in/sec. Choose the XD5 for shop-floor and warehouse duty, the XD3 for counters, offices and clinics.
Send us your label format and volumes and we will come back with pricing and a compatibility assessment the same working day.
