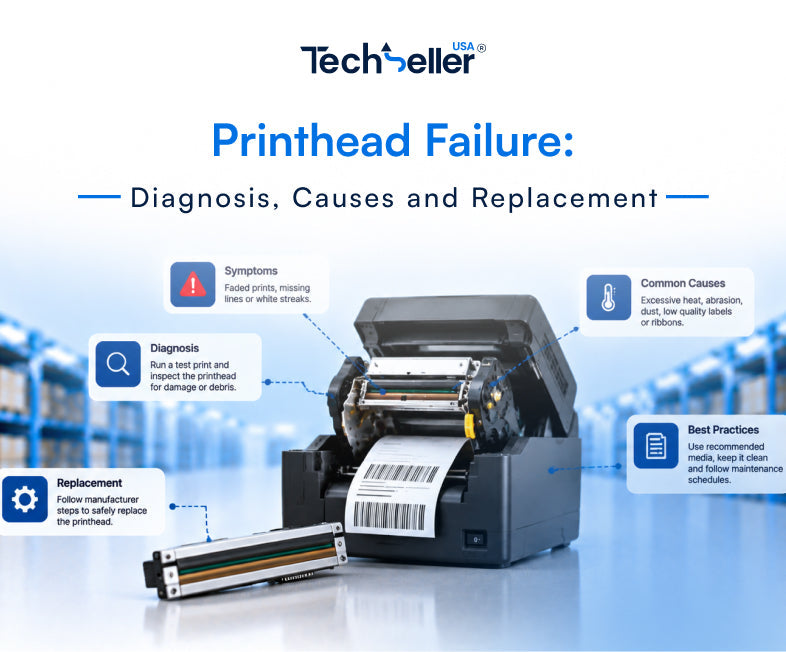

Printhead Failure: Diagnosis, Causes and Replacement
Printheads are the most expensive consumable on a thermal printer and the part most often replaced unnecessarily. A large share of "failed printhead" diagnoses turn out to be dirty print lines, wrong media or incorrect darkness settings — all of which produce symptoms that look identical to head failure.
This guide covers how to tell the difference, what actually kills printheads, and how to make them last.
The one symptom that is definitely the printhead
Start here, because it settles most cases immediately.
A printhead is a row of individual heating elements. When one dies, it stops producing heat at that exact position, and the result is a thin unprinted line running the full length of every label, always in the same place.
That is a dead element. It cannot be cleaned, adjusted or configured away, and it will not come back. The head needs replacing.
The key word is consistent. If the line is always in the same position on every label regardless of content, it is a dead element. If it moves, changes width, or comes and goes, it is something else.
Symptoms that are usually not the printhead
Faint or washed-out printing across the whole label. Almost always darkness setting, media mismatch or a dirty print line. Check those three before anything else.
Patchy printing that varies between labels. Usually contamination on the print line, or media with an inconsistent coating.
Print fading toward one edge. Typically head pressure or alignment rather than element failure — the head is not making even contact with the platen across its width.
Smearing or smudging. Ribbon type mismatched to the label material, or the head running hotter than the combination needs.
Wrinkled ribbon. Ribbon tension or alignment, not the head.
Work through cleaning, media and darkness first. It costs a few minutes and frequently saves a printhead.
The three-step check before ordering a printhead
1. Clean the print line. Use isopropyl alcohol on a lint-free cloth or a proper cleaning card, with the printer off and the head cool. Wipe along the print line, not across it. Residue from label adhesive and ribbon builds up invisibly and blocks heat transfer, which mimics a failing head almost exactly.
2. Try known-good media. Load a roll you know works from a previous batch. Media quality varies more than most buyers expect, and a bad batch produces faint or patchy output that looks like hardware failure. This single test resolves a surprising number of cases.
3. Check darkness and speed. Darkness too low produces faint labels. Speed too high for the media gives the head insufficient dwell time. Both are software settings that get changed accidentally, often by someone troubleshooting something else.
If all three are clear and the fault persists, then consider the head.
What actually wears printheads out
Understanding this is what makes the difference between replacing a head every year and every five.
Abrasion from media. The head is in physical contact with the label as it passes. Cheap or poorly coated media is more abrasive and wears the elements faster. This is the single largest factor and the one most under your control.
Excessive darkness. Running darkness higher than the media needs makes elements work harder and hotter than necessary on every single label. Set it to the lowest value that produces a clean, verifiable barcode — not to maximum.
Contamination. Adhesive residue, paper dust and ribbon debris cause uneven heat transfer and localised hot spots. Regular cleaning genuinely extends head life.
Static discharge. Printheads are sensitive to static. Touching the print line with bare fingers can kill elements instantly, and so can dry environments with synthetic media.
Physical damage. Anything hard passing under the head — a label with a foreign object, a torn liner, a jam cleared roughly — can scratch the elements.
Resolution changes how fast a head wears
A point that is not obvious and matters when specifying.
A 300 dpi head has smaller, more densely packed heating elements than a 203 dpi head. Smaller elements have less thermal mass, so they are more sensitive to abrasion, contamination and excessive darkness.
The practical consequence: higher resolution printers demand better media discipline. Cheap labels that a 203 dpi printer tolerates will shorten the life of a 300 dpi head noticeably, and a 600 dpi head is more sensitive still.
If you are running 300 dpi or 600 dpi, certified media is not an upsell — it is what keeps the consumable cost predictable.
Matching the replacement head
Printheads are not interchangeable across resolutions, and this catches people ordering by printer model alone.
A Zebra ZT411 takes a different printhead depending on whether it is the 203, 300 or 600 dpi variant. The part numbers differ — P1058930-009 for 203 dpi, P1058930-010 for 300 dpi and P1058930-011 for 600 dpi — and fitting the wrong one does not work.
Two ways to establish which you have: check the printer configuration label or self-test print, which states the resolution; or read the part number off the existing head before ordering.
Do not assume from label appearance. The difference between 203 and 300 dpi output is not obvious by eye on a large barcode.
Why a spare head on the shelf pays for itself
A printhead is a wear part, not a failure part. It has a finite life measured in linear metres printed, and it will reach it — the only question is when.
On a production line, a shipping bay or a dispensing counter, a dead printhead stops the process. If the replacement is three days away, that is three days of workaround: printing elsewhere, hand-writing labels, or holding shipments.
The head costs the same whether you buy it now or in an emergency. Buying it now converts an outage into a fifteen-minute swap. For any printer whose failure stops work, that is the cheapest insurance in the building.
Replacing a head cleanly
Power the printer off and let the head cool completely — they run hot and burns are easy.
Handle the new head by its edges and never touch the print line with bare fingers. Static and skin oils both damage elements.
Clean the platen roller while you have access. A worn or contaminated platen puts uneven pressure on a new head and will damage it faster than necessary.
After fitting, run a test print and check the barcode with a verifier or at least a scanner before returning the printer to production. Reset the printhead life counter if the printer has one, so future maintenance scheduling is accurate.
Common questions
How do I know if my printhead has actually failed?
A thin unprinted line running the full length of every label, always in the same position, is a dead heating element and needs replacement. Faint, patchy or uneven printing that varies between labels is usually cleaning, media or darkness settings instead.
What should I check before ordering a printhead?
Three things: clean the print line with isopropyl alcohol along its length; try a roll of media you know works from a previous batch; and check darkness and speed settings. These resolve a large share of suspected head failures.
What wears a printhead out fastest?
Abrasive media is the largest factor, followed by running darkness higher than necessary, contamination from adhesive and dust, and static discharge from touching the print line. All four are largely controllable.
Do 300 dpi printheads wear faster than 203 dpi?
They are more sensitive. Smaller, more densely packed elements have less thermal mass, so abrasion, contamination and excessive darkness affect them more. Higher resolution printers need better media discipline to keep consumable costs predictable.
Is a printhead the same across all versions of a printer model?
No. The head differs by print resolution, so a 203, 300 and 600 dpi version of the same printer take different part numbers. Check the configuration label or self-test print for the resolution, or read the part number off the existing head.
Tell us your printer model and resolution and we will confirm the correct printhead part number before you order.
