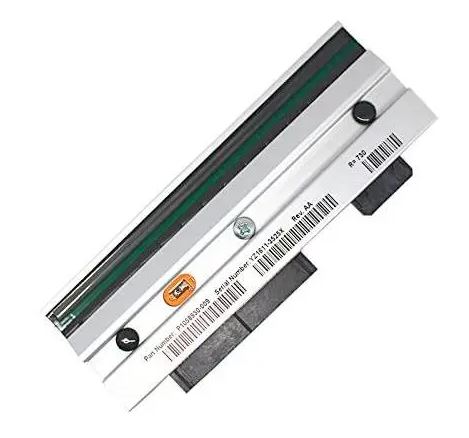

Zebra P1058930-011 ZT411 600dpi Printhead: Replacement and Maintenance Guide
Six hundred dots per inch is a specification almost nobody needs and a small number of industries cannot work without. If you are looking at the Zebra P1058930-011, you already run a 600 dpi ZT411, and you probably print Data Matrix codes small enough to fit on a circuit board component or a surgical instrument.
This is the genuine OEM 600 dpi replacement printhead for that printer. It is also the most demanding of the three ZT411 heads to look after, and the reasons are worth understanding.
What 600 dpi is actually for
At 24 dots per millimetre, a 600 dpi head resolves detail that 203 dpi and 300 dpi heads physically cannot. The applications are narrow and specific:
Electronics component marking, where a traceability code must fit on a part measured in millimetres. Medical device and surgical instrument labelling, where regulations require unique device identification on very small items. Laboratory and specimen labelling, where vial labels carry dense 2D codes alongside human-readable text. Pharmaceutical unit-dose packaging, where a single blister pocket must carry batch and expiry data.
Outside these, 600 dpi is expensive over-specification. It prints more slowly than lower resolutions, the head costs more, and it wears faster. Anyone printing shipping labels on a 600 dpi machine is paying a running-cost penalty for nothing.
P1058930-011 specifications
| Part Number | P1058930-011 |
| Manufacturer | Zebra |
| Component Type | Replacement Thermal Printhead |
| Print Resolution | 600 dpi (24 dots/mm) |
| Print Width | 4 inches (104 mm) |
| Compatible Printer | Zebra ZT411 Industrial, 600 dpi |
| Print Method | Thermal Transfer / Direct Thermal |
| Genuine OEM | Yes |
| Certified Supplies | Recommended for optimal life |
| Weight | 0.35 lbs |
| Condition | New |
| Warranty | 30-day TechSellerUSA warranty |
Why certified supplies stop being optional at this resolution
Zebra recommends certified media and ribbon across its printer range. At 203 dpi you can often ignore that and get acceptable results from generic stock. At 600 dpi you cannot, and the reason is physical rather than commercial.
A 600 dpi head has three times the element density of a 203 dpi head in the same print line, so each heating element is very small. Small elements are far more sensitive to two things: abrasive particles in the media coating, and inconsistent ribbon thickness. Generic ribbon that varies slightly in coating weight produces uneven heat transfer, and the head compensates by running hotter in places.
The result is not a dramatic failure. It is a head that lasts a fraction of its expected life and fails element by element, producing progressively more dropouts in codes that then fail verification. On a regulated production line, that failure is expensive well before the head is replaced.
For 600 dpi work, the cost difference between certified and generic supplies is almost always smaller than the cost of the printhead it protects.
SKU: P1058930-011 | New, genuine Zebra | 30-day warranty
View Details & Request a Quote →Verification changes how you detect failure
On a shipping label, a slightly degraded barcode still scans and nobody notices until it does not. In the industries that use 600 dpi printing, codes are usually verified - checked against a grading standard rather than simply scanned.
That changes the failure conversation. A verifier flags declining grade long before a code becomes unreadable, which means you get advance warning that a head is deteriorating. Sites running verification should treat a downward grade trend as a maintenance signal, not wait for a hard failure.
It also means that when a head does need replacing, the replacement is often driven by compliance rather than by the printer stopping. Holding a spare matters more here than elsewhere, because a failed verification can halt a regulated line immediately.
Confirm before ordering
The ZT411 takes three resolution-specific printheads: P1058930-009 for 203 dpi, P1058930-010 for 300 dpi, and this part for 600 dpi. They do not interchange.
Print the configuration label from the printer's front panel to confirm resolution before ordering. If you hold spares for a mixed fleet, store them labelled by resolution rather than by printer model, since the three heads look very similar in an unmarked box and fitting the wrong one during a breakdown wastes both the part and the downtime.
Maintenance at 600 dpi
Clean the print line with isopropyl alcohol at every ribbon change, without exception. On a head with this element density, skipped cleaning is the fastest route to premature failure.
Keep the darkness setting as low as verification allows. Raising darkness to compensate for weak print is usually treating a media or contamination symptom while accelerating the underlying damage.
Inspect the platen roller frequently for adhesive residue. Uneven pressure across a fine print line damages elements unevenly, and on a 600 dpi head the resulting dropout appears in codes long before it would be visible in text.
If you are specifying rather than maintaining, our ZT411 guide covers the full resolution decision.
Ordering
We supply the P1058930-011 new and genuine with a 30-day warranty. Send us your printer's configuration label details if you want the part confirmed before ordering. Our Zebra range and full printers and scanners catalogue are online.
Common questions
What applications actually need 600 dpi printing?
Electronics component marking, medical device and surgical instrument identification, laboratory specimen vials and pharmaceutical unit-dose packaging - anywhere a traceability code must fit on an item measured in millimetres. Outside these, 600 dpi is expensive over-specification.
Why do certified supplies matter more at 600 dpi?
A 600 dpi head has three times the element density of a 203 dpi head, so each heating element is very small and far more sensitive to abrasive particles in media coating and to inconsistent ribbon thickness. Generic supplies typically cost a fraction of the printhead they damage.
Will this printhead fit a 300 dpi ZT411?
No. The three ZT411 heads are resolution-specific and do not interchange. Print the configuration label from the front panel to confirm, and store spares labelled by resolution rather than printer model since the parts look similar in unmarked boxes.
How do I know when to replace it?
In verified environments, a downward trend in code grade is the early signal - it appears well before a code becomes unreadable. Treat that trend as a maintenance indicator rather than waiting for a hard failure, since a failed verification can halt a regulated line immediately.
If you run verification and want to plan a spares holding around your grade trend data, our team can advise on stocking levels.
