Zebra ZD421 (ZD4A042-D01M00EZ) Desktop Label Printer: Specs and Buying Guide

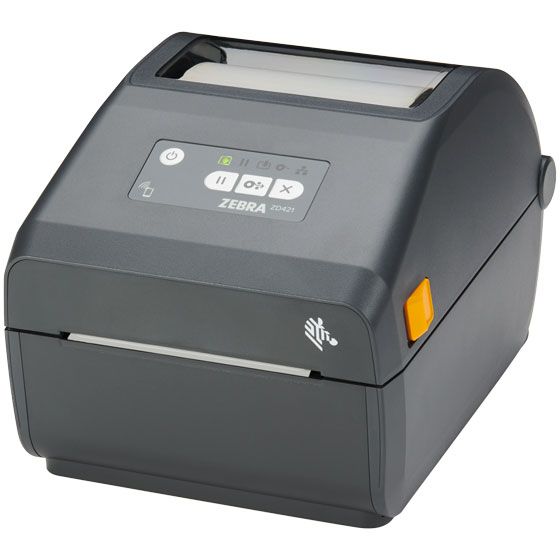

The Zebra ZD421 (ZD4A042-D01M00EZ) is the printer most businesses actually need when they think they need an industrial one. It is a 4-inch, 203 dpi desktop thermal transfer label printer built for retail backrooms, clinic reception desks, small warehouses, pharmacies and office shipping stations - places that print hundreds of labels a day rather than thousands an hour. This guide covers the complete ZD4A042-D01M00EZ specification, the ribbon cartridge system that makes it unusual, where the ZD421 genuinely outperforms a heavier machine, where it does not, and what to check before you buy.
What the Zebra ZD421 Is Built to Do
Zebra's ZD400 series replaced the long-running GK420 and GX420 desktop line, and the ZD421 is the thermal transfer model within it. Thermal transfer matters here: it uses a ribbon to bond ink onto the label, which produces marks that survive months or years, unlike direct thermal labels that fade with heat and sunlight. If you are printing asset tags, product labels that sit on a shelf, or anything that must stay legible past a few weeks, thermal transfer is not optional.
The headline design change from the older GX420 is the ribbon cartridge. Instead of threading a ribbon roll onto spindles - a fiddly job that operators get wrong and that causes wrinkle and waste - the ZD421 accepts a drop-in cartridge that seats in seconds. In a business where a part-time staff member changes the ribbon rather than a trained technician, this single feature removes most support calls.
At 5.5 lbs the ZD421 sits comfortably on a counter, and its footprint is deliberately small. It prints up to 6 inches per second, which is slower than an industrial unit but faster than any operator can peel and apply labels by hand. For counter-side and desk-side work, print speed is almost never the constraint.
ZD4A042-D01M00EZ Full Specifications
| Part Number | ZD4A042-D01M00EZ |
| Manufacturer | Zebra |
| Product Family | ZD421 Desktop |
| Print Method | Thermal Transfer |
| Print Resolution | 203 dpi (8 dots/mm) |
| Print Speed | Up to 6 in/sec |
| Max Print Width | 4.09 inches (104 mm) |
| Max Media Width | 4.65 inches (118 mm) |
| Memory | 256MB Flash / 128MB DRAM |
| Connectivity | USB 2.0, USB Host, Modular slot |
| Media Types | Labels, Tags, Wristbands, Receipts |
| Ribbon Type | Wax, Wax/Resin, Resin |
| Programming | ZPL, ZPL II, EPL2, CPCL |
| Weight | 5.5 lbs |
| Condition | New |
| Warranty | 30-day TechSellerUSA warranty |
Three Features That Change Day-to-Day Use
The modular connectivity slot
The ZD4A042-D01M00EZ ships with USB 2.0 and a USB Host port, plus a modular bay. That bay accepts a field-installable Ethernet, serial or wireless module, which means you are not locked into your original purchase decision. A printer bought for a single USB-connected workstation can be moved onto the network eighteen months later without replacing the hardware. Buyers frequently overspend on connectivity they will never use; with the ZD421 you can defer that decision.
Four print languages out of the box
ZPL, ZPL II, EPL2 and CPCL are all supported. EPL2 support in particular means the ZD421 slots into environments still running label formats written for Eltron-era or GK420 printers, so a fleet replacement does not require rewriting templates. CPCL support lets it share formats with Zebra mobile printers such as the ZQ630, which is useful in operations that print both at a desk and on a cart.
Wristband and receipt capability
Media handling covers labels, tags, wristbands and receipt stock up to 4.65 inches wide. Wristband support is the reason the ZD421 appears constantly in clinics, urgent care centres and outpatient departments - patient identification bands and specimen labels come off the same unit that prints admission paperwork.
Where the ZD421 Fits, and Where It Does Not
The ZD421 is the right choice for retail price and shelf labelling, pharmacy and clinic labelling, small parts and inventory tagging, office shipping desks, laboratory sample labels and light manufacturing identification. Anywhere a single operator prints in bursts rather than continuously, this printer is comfortably specified.
It is the wrong choice for a continuously running pack line, a three-shift distribution centre, or any application where a printer sits inside a dusty or high-vibration environment. The plastic housing and lower duty cycle are real limits, not marketing distinctions. The most common failure we see in returned desktop printers is a ZD421 that was installed on a conveyor line because it was cheaper than the industrial alternative, then ran until the printhead misaligned. If your daily volume runs into the thousands, buy the industrial unit the first time.
SKU: ZD4A042-D01M00EZ | New | 30-day warranty | Single or volume orders
View Details & Request a Quote →Zebra ZD421 vs ZT411: Choosing Correctly
These two printers get compared constantly because they share a 4-inch print width and a 203 dpi option, but they are built for different worlds. The Zebra ZT411 is a die-cast metal industrial printer running up to 14 in/sec with 512MB DRAM, designed to run all day inside a distribution centre. The ZD421 is a 5.5 lb desktop unit at 6 in/sec with 128MB DRAM, designed to sit on a counter.
The practical test is daily volume and environment, not label size. Under roughly 500 labels a day in a clean indoor space, the ZD421 is the better economic choice and takes up a quarter of the room. Above that, or anywhere near dust, forklifts or continuous operation, the ZT411 will cost less over three years despite the higher purchase price, because you will not be replacing printheads and chassis.
There is also a middle path many buyers miss: a ZD421 at each of several counters often beats one industrial printer plus a long cable run, because it removes the walking. Total throughput is not the only metric - operator time is usually the expensive part.
Getting the Most Out of a ZD421
Match your ribbon to your label stock and your environment. Wax ribbon on paper labels is the cheapest combination and is correct for short-life indoor labels. Wax/resin handles handling abrasion and light moisture and is the sensible default for product and shipping labels. Resin bonds to synthetic stock and resists chemicals, heat and outdoor exposure, which is what asset tags and laboratory labels need.
Clean the printhead with isopropyl alcohol every time you change a ribbon cartridge, not only when print quality drops. Keep the darkness setting as low as your barcode scanner will reliably read, because excess heat is the main cause of premature printhead wear. And use Zebra's free setup utilities to store your label formats on the printer itself, so a workstation failure does not stop labelling.
Buying the ZD421 from TechSellerUSA
We supply the ZD4A042-D01M00EZ in new condition with a 30-day warranty, available as a single unit or in volume for multi-site rollouts. Our customers include retail chains, healthcare providers, laboratories, universities and government departments, and we handle purchase orders, net terms and volume quotes directly rather than through a generic checkout. You can browse the full Zebra printer and scanner range or see everything in our printers and scanners category.
Frequently Asked Questions
Is the ZD4A042-D01M00EZ thermal transfer or direct thermal?
The ZD4A042-D01M00EZ is the thermal transfer configuration, meaning it uses a ribbon to bond ink onto the label for long-life prints. Direct thermal ZD421 variants exist under different part numbers and print without a ribbon, but those labels fade with heat and light exposure.
Can the Zebra ZD421 be connected to Ethernet or Wi-Fi?
Yes. This configuration ships with USB 2.0 and a USB Host port plus a modular connectivity slot that accepts a field-installable Ethernet, serial or wireless module. You can add network connectivity after purchase without replacing the printer.
Will the ZD421 replace an older Zebra GK420 or GX420?
Yes. The ZD400 series is Zebra's direct successor to the GK420 and GX420 desktop line, and the ZD421 supports ZPL, ZPL II and EPL2, so existing label formats generally print unchanged. The ribbon cartridge system also removes the manual ribbon threading required on the older models.
How many labels a day can a ZD421 handle?
As a desktop-class printer it is comfortably specified for a few hundred labels a day in a clean indoor environment. For continuous shift work or volumes in the thousands, an industrial printer such as the ZT411 is the correct choice and will cost less over three years.
Can the ZD421 print patient wristbands?
Yes. Media handling covers labels, tags, wristbands and receipt stock up to 4.65 inches wide, which is why the ZD421 is widely used in clinics, urgent care and outpatient departments for patient identification bands alongside specimen and pharmacy labels.
