Bixolon XD3-40t Desktop Label Printer: Specs and Buying Guide
How many labels a day does your counter actually print? Most people asked this guess high, then check and find the real figure is somewhere between fifty and three hundred. That number decides whether you need an industrial printer or a desktop one, and getting it wrong in either direction is expensive.

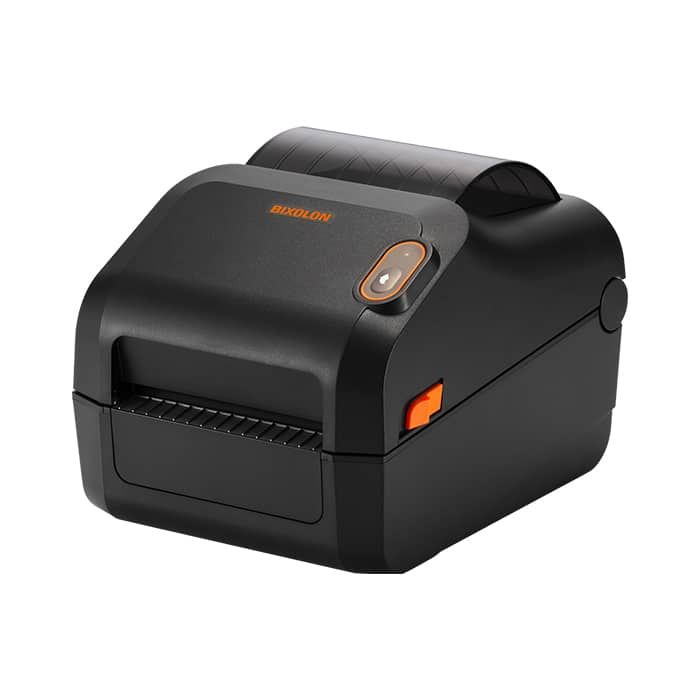

The Bixolon XD3-40t is built for the lower end of that range. It is a 4-inch, 203 dpi thermal transfer desktop printer weighing 3.5 lbs, running at 5 inches per second, and it speaks ZPL and EPL through emulation so it drops into systems already configured for other brands.
Desktop class, and what that means
Desktop printers differ from industrial ones in three ways that matter: housing material, duty cycle and footprint. The XD3-40t is designed to sit on a counter or a desk, not beside a conveyor. Its 3.5 lb weight makes it easy to reposition, and its footprint suits a pharmacy bench, a retail backroom, a clinic reception or an office shipping station.
What it is not built for is continuous shift work in a dusty environment. That is not a criticism - it is a specification, and buying a desktop printer for an industrial role is the most common and most costly mistake in this category. Printers installed on a pack line because they were cheaper start producing skewed or faded barcodes within months.
If your volume runs into the thousands per day, or the printer will live near forklifts and dust, the industrial XD5-40t costs more upfront and less over three years.
Bixolon XD3-40t specifications
| Part Number | XD3-40 |
| Manufacturer | Bixolon |
| Product Family | XD3 Desktop |
| Print Method | Thermal Transfer / Direct Thermal |
| Print Resolution | 203 dpi (8 dots/mm) |
| Print Speed | Up to 5 in/sec |
| Max Print Width | 4.09 inches (104 mm) |
| Max Media Width | 4.4 inches (112 mm) |
| Memory | 128MB Flash / 32MB SDRAM |
| Connectivity | USB, Serial, Ethernet |
| Media Types | Labels, Tags, Continuous Media |
| Ribbon Type | Wax, Wax/Resin, Resin |
| Programming | SLCS, BPL-Z (ZPL), BPL-E (EPL) |
| Weight | 3.5 lbs |
| Condition | Refurbished, function-tested |
| Warranty | 30-day TechSellerUSA warranty |
Ethernet on a desktop printer is underrated
Many desktop label printers ship USB-only, with network connectivity as a paid option or not at all. The XD3-40t includes Ethernet alongside USB and Serial as standard, and this changes how it can be deployed.
A networked label printer sits on a static IP and receives jobs from any workstation, or directly from a warehouse or pharmacy system, without a dedicated PC attached to it. It can be monitored remotely and swapped out without reconfiguring a workstation. For a business running several sites, that is the difference between managing printers and managing PCs that happen to have printers attached.
Serial support is worth noting too, since a surprising number of pharmacy, laboratory and legacy retail systems still expect a serial connection and cannot be changed.
SKU: XD3-40 | Refurbished & function-tested | 30-day warranty
View Details & Request a Quote →Choosing between thermal transfer and direct thermal
The XD3-40t does both, and the choice comes down to one question: how long does the label need to stay readable?
Direct thermal needs no ribbon at all. Lower running cost, nothing to thread, nothing to run out of. The print fades within months when exposed to heat or light. Shipping labels, pick labels, food labels with short dates and anything consumed quickly are all fine.
Thermal transfer bonds ink onto the label and lasts years. Asset tags, equipment identification, product labels that sit on a shelf, laboratory samples and anything going outdoors need it.
A useful test: if the label will still need to be readable next year, use thermal transfer. If not, save the ribbon cost.
Where it earns its place
Pharmacy dispensing, retail backroom and shelf labelling, clinics and outpatient departments, laboratory sample labelling, small parts and inventory tagging, and office shipping desks. Anywhere one operator prints in bursts rather than continuously.
The ZPL emulation makes it particularly useful as a replacement unit. A pharmacy or clinic with a failed Zebra desktop printer can install an XD3-40t without touching the dispensing software configuration, which for regulated environments avoids a change-control process nobody wants to open.
Getting a quote
We hold the XD3-40t refurbished and function-tested with a 30-day warranty, single units or volume. If it is replacing an existing printer, tell us the model it is replacing and we will confirm the emulation and connectivity match. See the rest of our Bixolon range or the full printers and scanners catalogue.
Common questions
Can the XD3-40t replace a Zebra desktop label printer?
Usually yes. BPL-Z emulates ZPL, so existing label formats print unchanged and the host system does not need reconfiguring. This makes it a practical drop-in replacement in pharmacies and clinics where changing software configuration means opening a change-control process.
Does it come with Ethernet as standard?
Yes, alongside USB and Serial. Many desktop label printers ship USB-only with network as a paid option, so built-in Ethernet is a genuine advantage - it lets the printer sit on a static IP and receive jobs without a dedicated attached PC.
How many labels a day can it handle?
It is specified for a few hundred a day in a clean indoor environment. Beyond that, or anywhere near dust and continuous operation, the industrial XD5-40t is the correct choice and will cost less over three years despite the higher purchase price.
Should I use a ribbon or print direct thermal?
If the label needs to still be readable next year, use thermal transfer with a ribbon. If it will be consumed within weeks - shipping labels, pick labels, short-date food labels - direct thermal saves the ribbon cost entirely.
Tell us the printer you are replacing and your daily label volume, and we will confirm whether the XD3 or the XD5 is the right size for the job.
