IBM 81Y9878 4TB SATA Simple-Swap HDD: Maintenance Planning Guide
Four terabytes in a simple-swap tray is a combination that says something specific about the system it belongs to: a bulk storage role on an IBM System x server whose bays were never designed for maintenance without downtime.

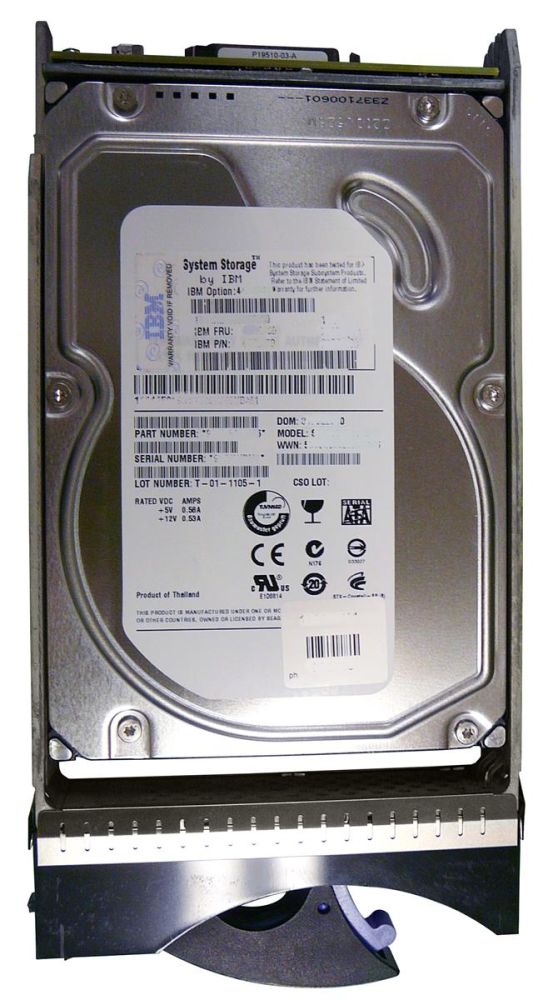

The IBM 81Y9878 is a 4TB SATA 6Gb/s 7200RPM 3.5-inch nearline drive in a simple-swap carrier, and the carrier type changes how you have to plan around it.
Simple-swap means planning a maintenance window
The distinction is mechanical and operational. A hot-swap tray connects through a backplane that handles power sequencing, so a drive can be pulled and replaced while the server runs. A simple-swap tray connects directly rather than through that backplane, so the server must be powered down before removal.
Simple-swap carriers have no lever mechanism, which is the quickest way to identify them at the chassis. Hot-swap carriers do.
The consequence is not just inconvenience. On a production system a power-down means an outage window, which means approvals, scheduling and notice — and the array is sitting degraded the entire time you are arranging it. A drive that fails on a Friday might not be replaced until the following weekend.
That reality should shape two decisions. Use double parity where you can, so a degraded array survives a second failure during the wait. And hold the spare physically on site, because there is no point compressing the delivery time when the maintenance window is the real delay.
81Y9878 specifications
| Part Number | 81Y9878 |
| Manufacturer | IBM |
| Capacity | 4TB |
| Interface | SATA 6Gb/s |
| Rotational Speed | 7200 RPM |
| Form Factor | 3.5 inch LFF |
| Carrier Type | Simple-Swap |
| Drive Class | Nearline |
| Condition | Refurbished, function-tested |
| Warranty | 30-day TechSellerUSA warranty |
Why simple-swap bays existed at all
They were a cost decision, and a reasonable one for the roles they were sold into.
A hot-swap backplane with power sequencing and status indicator wiring costs more to build than direct connections. On a server intended for a branch office, a departmental file share, a backup target or a test environment, the ability to change a drive without downtime was not worth the premium — those systems could tolerate a scheduled outage.
IBM therefore offered both, and buyers who did not need hot-swap saved money. That was sensible at purchase and it is a constraint you inherit now.
Worth knowing when planning: simple-swap and hot-swap drives are not interchangeable in either direction. A simple-swap drive will not seat in a hot-swap bay, and the reverse is equally true. Ordering by capacity and interface alone, without checking the carrier, is the most common failed order on this platform.
SKU: 81Y9878  | Refurbished & function-tested  | Simple-swap carrier  | 30-day warranty
View Details & Request a Quote →4TB nearline in a System x chassis
At 4TB this is a capacity drive, and the roles it serves on these servers are the obvious ones: backup targets, archive volumes, file shares, surveillance retention and any secondary tier behind faster storage.
The workload characteristic that matters is sequential access. Nearline drives at 7200 RPM perform close to their rating on large streaming reads and writes; heavy random I/O is where the spindle speed becomes the constraint. Putting a busy virtualisation datastore on drives like these produces exactly the sluggishness that then gets blamed on the server.
On rebuild: 4TB sits in a manageable middle ground. Longer than a 1TB drive by a meaningful margin, but nowhere near the day-plus windows that 12TB and above can produce. Combined with the simple-swap maintenance delay, though, double parity is the sensible default here rather than an optional extra.
ServeRAID firmware and IBM coding
IBM codes drive firmware and ServeRAID controllers check it. A generic 4TB SATA drive may work while flagged as unsupported, may work without reporting health telemetry so predictive failure warnings never arrive, or may be refused during an array rebuild.
On a simple-swap system that last outcome is particularly costly, because you have already spent a maintenance window powering the server down. Discovering the replacement is rejected at that point means scheduling another one.
For production arrays, ordering by IBM part number removes the risk for a small price difference. Our compatibility guide lists IBM carrier types and part numbers, and the 00D5317 guide covers simple-swap in more detail.
Ordering
We supply the 81Y9878 refurbished and function-tested with a 30-day warranty. If you are unsure whether your chassis takes simple-swap or hot-swap carriers, send us the server machine type and model and we will confirm before you order. Browse the full IBM range or our complete enterprise hard drives catalogue.
Common questions
What does simple-swap mean in practice?
The drive connects directly rather than through a hot-swap backplane, so the server must be powered down before removal. That means an outage window with approvals and scheduling, during which the array sits degraded — often far longer than the delivery time for the replacement.
How do I tell which carrier type my chassis uses?
Look at the front of the server. Hot-swap carriers have a lever mechanism; simple-swap carriers do not. The server machine type and model will also confirm it, as will the part number on a fitted drive.
Why did IBM sell servers with simple-swap bays?
Cost. A hot-swap backplane with power sequencing and status wiring is more expensive to build, and for branch offices, departmental file shares, backup targets and test systems the ability to change a drive without downtime was not worth the premium.
Should I use RAID 6 on a simple-swap system?
It is a stronger argument here than usual. Because replacement waits on a maintenance window rather than just a delivery, the array can sit degraded for days. Double parity means a second failure during that wait is survivable.
Send us your machine type and model and we will confirm carrier compatibility before quoting.
