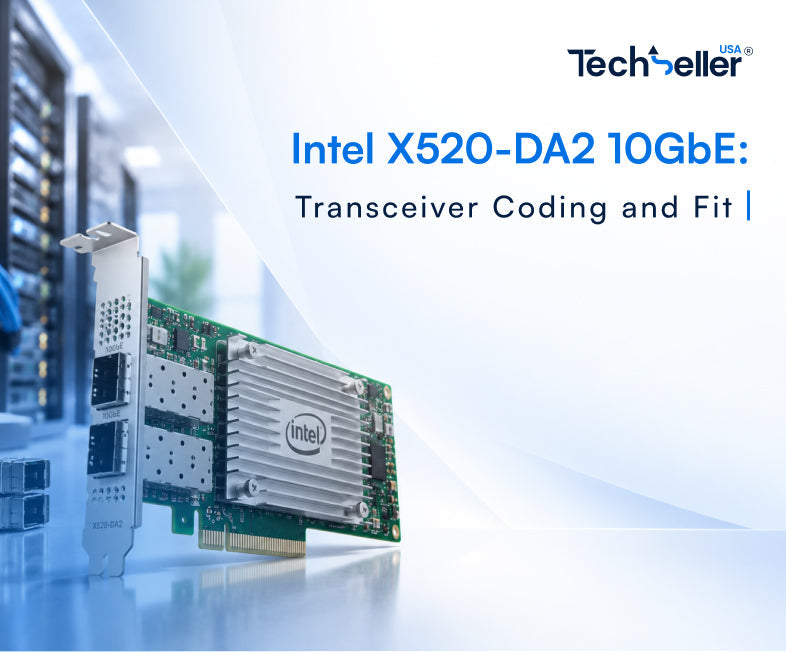

Intel X520-DA2 10GbE: Transceiver Coding and Fit
The Intel X520-DA2 is a dual-port 10 gigabit network adapter with SFP+ ports, and one of the most widely deployed 10GbE cards in servers. It has one behaviour worth knowing about before you order transceivers.
The transceiver restriction
The thing that catches people, and it is specific to this card family.
X520 adapters have historically restricted which SFP+ transceivers they will accept, refusing modules not coded as Intel. A third-party or switch-vendor-coded module can be rejected outright, and the link simply does not come up.
Two things to know.
Behaviour varies by firmware and driver. Some combinations allow unsupported modules, some allow them with a warning, and some refuse. Do not assume based on what someone else's card did.
Direct-attach copper cables face the same check. This catches people who assumed the restriction applied only to optics.
The practical approach: confirm what your specific card and firmware accept before buying modules, and buy the card and transceivers together where you can. Our transceiver guide covers vendor coding at both ends of a link, since your switch may have its own restriction.
And note the obvious point that follows: transceivers are not included with the card. SFP+ ports ship as empty cages, and the modules or cables are separate parts.
Choosing what goes in the ports
Three options, and cost differs considerably.
Direct-attach copper for short runs within a rack — a single cable with transceivers permanently attached at both ends. Cheapest and simplest where distance allows.
Short-range optics for runs within a building on multi-mode fibre.
Long-range optics for longer runs on single-mode fibre.
Both ends of a fibre link must match in type and wavelength. Our fibre guide covers what goes wrong optically, and the single most common cause of a link that will not come up is a dirty connector rather than a faulty part.
PCIe and driver considerations
Two checks.
Sufficient lanes. A dual-port 10 gigabit adapter needs real bandwidth, and physical slot size is not the same as electrical width — a card in an under-wired slot works at reduced throughput with nothing reported as a fault. Our PCIe guide covers this, and notes that on dual-socket boards some slots are dead with only one processor fitted.
Bracket height. 1U servers generally take low-profile cards only, and a card supplied with only a full-height bracket needs the correct low-profile one sourced separately.
On driver support, the X520 family has an advantage worth mentioning: it is old enough to be very widely supported and mature across operating systems and hypervisors. That is the opposite of the concern that applies to some other adapters of similar age — though as with any older generation, confirm against the version you intend to run rather than the one installed.
Is 10 gigabit worth it here?
Worth checking rather than assuming, because the upgrade frequently changes nothing.
It helps where the network is genuinely the constraint — storage traffic to a NAS or SAN, backup windows limited by transfer time, virtualisation hosts carrying many guests on shared links.
It helps less where the limit is elsewhere. A backup that runs slowly because the storage behind it is slow does not improve with a faster network — our performance guide covers establishing where the limit actually is.
And the requirement most often missed: the switch has to support 10 gigabit too. A 10GbE adapter in a gigabit switch port runs at gigabit, which is correct behaviour and a regular surprise. Check negotiated speed after installation rather than assuming — our network monitoring guide covers why that check is worth doing routinely.
Redundancy
Two ports on one card protect against a cable or switch port failing. They do not protect against the card failing.
Where availability matters, two separate cards connected to two different switches is what gives real resilience. Whether that is warranted depends on what the machine does, and it is worth deciding deliberately rather than assuming two ports equals redundancy.
Before you order
Your server model and generation, and how many processors are fitted. Free slots, their electrical width and whether they are low-profile. What your switch expects at the other end, including whether it restricts transceivers. Whether you need optics or direct-attach copper, and for what distance. And your current firmware level, since that affects what modules the card accepts.
Common questions
Why will my transceiver not work in this card?
X520 adapters have historically restricted which SFP+ modules they accept, refusing those not coded as Intel. Behaviour varies by firmware and driver, and direct-attach copper cables face the same check — which catches people who assumed it applied only to optics.
Do transceivers come with the card?
No. SFP+ ports ship as empty cages and the modules or direct-attach cables are separate parts. Buy the card and transceivers together where you can, given the coding restriction.
Optics or direct-attach copper?
Direct-attach copper for short runs within a rack — cheapest and simplest where distance allows. Optics for longer runs, matched in type and wavelength at both ends. Note that both ends of a fibre link must match.
Is driver support a concern on a card this age?
Less than with most adapters of similar age — the X520 family is old enough to be very widely and maturely supported across operating systems and hypervisors. Still confirm against the version you intend to run rather than the one installed.
My link is only running at 1 gigabit. Why?
Most likely the switch port supports only gigabit, which is correct behaviour. It can also be insufficient PCIe lanes, since physical slot size is not the same as electrical width and nothing reports that as a fault.
Tell us your server model, firmware level and what your switch expects, and we will confirm the card and compatible transceivers together.
