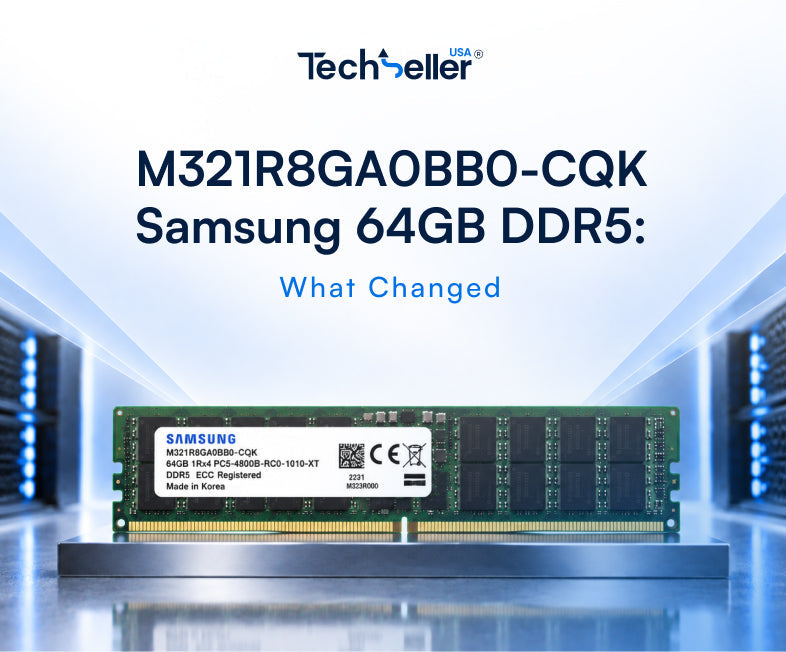

M321R8GA0BB0-CQK Samsung 64GB DDR5: What Changed
The M321R8GA0BB0-CQK is a Samsung 64GB DDR5 registered memory module. DDR5 changed more than the speed grade, and the differences matter when you are planning a purchase or a platform move.
DDR5 is not a drop-in upgrade
The point that governs everything.
DDR5 modules are physically and electrically incompatible with DDR4 slots. The notch position differs, so a module will not seat, and the memory controller in the processor supports one generation or the other rather than both.
That means the question is not whether you can upgrade a DDR4 server to DDR5 memory. You cannot. DDR5 requires a platform that was built for it, which means a newer processor generation and a newer board.
Our DDR4 versus DDR5 guide covers the comparison, and the practical consequence is that this is a module for a current-generation platform rather than an upgrade for an existing one.
What actually changed
Three architectural differences worth understanding, because they affect how you think about the memory.
Power management moved onto the module. DDR4 modules drew regulated power from the board; DDR5 modules carry their own voltage regulation. This makes the module more complex and is part of why DDR5 costs more per gigabyte, particularly early in a generation.
Each module is split into two independent sub-channels. A single DDR5 module presents two narrower channels rather than one wide one, which improves how the memory handles many simultaneous requests — the pattern a virtualisation host generates.
On-die ECC was added to all DDR5, including desktop modules. This is the difference most often misunderstood, and it deserves its own section.
On-die ECC is not module ECC
A genuine source of confusion, and worth being precise about.
On-die ECC corrects errors inside the memory chips. It exists because DDR5 chips are dense enough that internal errors are expected, and it protects the chip's own integrity. All DDR5 has it, including desktop modules.
Module ECC — the kind servers require — protects data travelling between the module and the processor, and reports errors to the system so they can be logged and acted on.
These are different protections at different points. A DDR5 module with on-die ECC is not an ECC module in the server sense, and a server requiring registered ECC memory will not accept it.
Our ECC guide covers why servers require the reporting element, which is arguably as valuable as the correction — a machine that logs correctable errors on a specific module tells you which one to replace before it fails outright.
Rank, capacity and speed as slots fill
The rules that decide what you can actually install.
A memory channel supports a limited number of ranks rather than a limited number of modules, and higher-capacity modules frequently use more ranks. Two consequences that persist from DDR4 into DDR5.
Filling every slot may not be possible with high-capacity modules.
Speed drops as channels fill on many platforms, so a fully populated machine can run its memory slower than a half-populated one. This is more pronounced at DDR5 speeds, not less.
The practical consequence: check the platform's population tables before ordering, and consider whether the configuration you want is actually supported at the speed you are paying for. Our server memory guide covers this and why channels must be populated evenly.
Confirm the exact speed grade, rank organisation and voltage against Samsung's specification for this part, since these vary within a line and they decide compatibility.
Where 64GB modules make sense
A sizing question worth thinking through.
Large modules cost more per gigabyte than mid-sized ones, and the premium grows as you approach the largest available capacity. So the question is what you are buying with it.
Slots are finite. Where you need a large total and the machine has limited slots, larger modules are the only route.
Headroom for later. Filling every slot with mid-sized modules leaves no upgrade path without replacing them. Larger modules in fewer slots leave room to add.
Speed at full population. Where a platform reduces speed as slots fill, fewer larger modules can be faster than more smaller ones at the same total.
Against that, if the machine has plenty of slots and you do not need the total, mid-sized modules are better value per gigabyte. Work out the total first, then the module size that reaches it best.
Before you order
Your server model and generation, and confirmation it is a DDR5 platform. How many processors are fitted, since each has its own channels. What is currently installed — capacity, speed and rank organisation. The platform's maximum capacity and its population rules. And what total you are aiming for, because that decides module size better than any general rule.
The management controller reports most of this without opening the machine — our management guide covers access.
Common questions
Can I put DDR5 in my DDR4 server?
No. The modules are physically and electrically incompatible — the notch position differs so a module will not seat, and the memory controller supports one generation or the other. DDR5 requires a platform built for it.
Does all DDR5 have ECC now?
All DDR5 has on-die ECC, which corrects errors inside the memory chips. That is not the same as module ECC, which protects data travelling between module and processor and reports errors to the system. A server requiring registered ECC will not accept a desktop DDR5 module.
Why is DDR5 more expensive per gigabyte?
Partly because power regulation moved onto the module itself, making it a more complex component than a DDR4 module. Generation timing also matters — the premium is largest early in a generation.
Will filling every slot give me the most memory bandwidth?
Not necessarily. Many platforms reduce memory speed as channels fill, so a fully populated machine can run slower than a half-populated one. Check the population tables before ordering the configuration you want.
Should I buy 64GB modules or more smaller ones?
Work out your target total first. Larger modules cost more per gigabyte but leave upgrade headroom, suit machines with limited slots, and can run faster where a platform reduces speed at full population. With plenty of slots and a modest total, mid-sized modules are better value.
