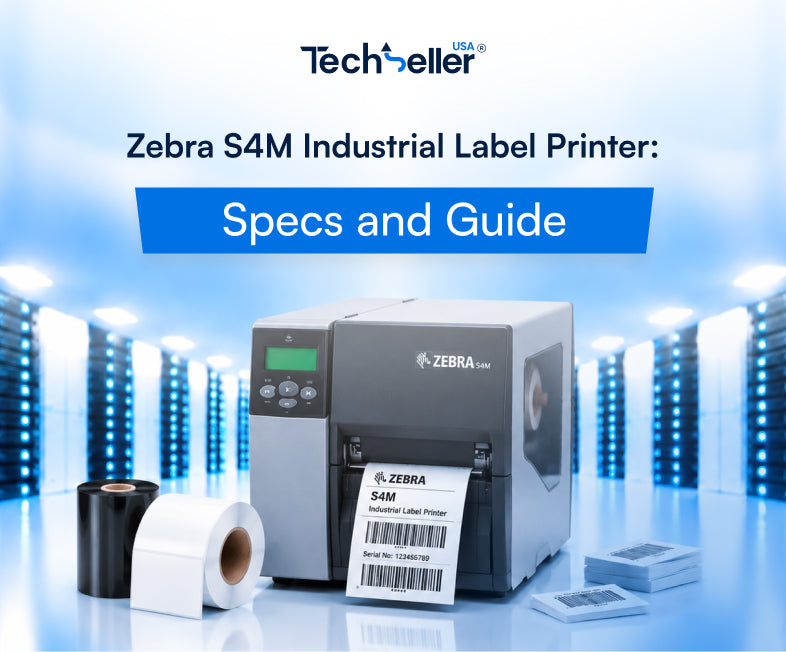

Zebra S4M Industrial Label Printer: Specs and Guide

Almost every label printer that gets returned as unsuitable was bought on the wrong number. Someone counted the labels the busiest day produced, found a printer rated above that figure, and bought it. Twelve months later the print is drifting, the operators are recalibrating twice a shift, and nobody connects the two.

The Zebra S4M sits in the part of the range that this mistake usually skips over. It is a metal-framed industrial printer at 27.5 lbs, prints a 4-inch label at 203 dpi in thermal transfer or direct thermal, and is supplied here as part S4M00-2001-0100T in refurbished, function-tested condition. It is the mid-weight class, and the mid-weight class exists for a specific reason.

What does 27.5 lbs actually tell you about a label printer?

Weight is the most honest specification on a thermal printer datasheet, because it is the one number the manufacturer cannot inflate. It tells you what the chassis is made of and what the mechanism is carrying.

A desktop label printer weighs somewhere between 3 and 5 lbs. That is a plastic shell, a light frame, a small media capacity and a mechanism designed to be opened by hand several times a day. A full industrial printer weighs 40 to 55 lbs, because it is a cast metal frame carrying a large media roll, a heavy-duty drive and a mechanism built to hold registration while running for hours without anyone touching it.

At 27.5 lbs the S4M is unambiguously on the industrial side of that line. The frame is metal, the media path is a proper one rather than a snap-shut clamshell, and the mechanism is built to be driven continuously rather than in bursts. What it is not is a heavy production machine. It does not carry the media capacity, the drive mass or the frame rigidity of a 50 lb printer, and buying it as though it were one is a different mistake in the opposite direction.

That middle position is the whole point of the class. Most operations that have outgrown a desktop printer have not thereby arrived at production volumes. They have arrived at sustained volumes, which is a separate thing, and our industrial versus desktop label printers guide covers where the boundary really falls.

Sizing by labels per day is the wrong question

The question that matters is hours of continuous printing per shift, not labels per day. Those two numbers look interchangeable on a purchase form and they describe completely different demands on a machine.

A desktop printer can produce a high daily count. Give it a queue of two hundred labels, let it run for eight minutes, and it will do that six times across a day without complaint. Twelve hundred labels a day sounds like a serious workload and the printer handles it comfortably, because between each burst the printhead cools, the drive rests and the mechanism recovers.

Now take the same twelve hundred labels and print them as one continuous run at the start of a shift. The head runs hot for the whole run and stays hot. The platen roller is under constant load. The drive train never gets a pause. Nothing dramatic happens on day one, and the printer completes the job. It is the thousandth repetition of that pattern that separates a printer built for sustained duty from one built for bursts.

So the sizing conversation should start with three questions. How long is the longest unbroken print run in a normal shift? How many of those runs happen before the machine gets an idle hour? And is the volume flat across the week or concentrated into two days? An operation printing four hundred labels a day in one unbroken stretch is a harder duty than one printing fifteen hundred spread across a shift, even though the second number is nearly four times larger.

This is also why peak day sizing misleads so reliably. The peak day is the number people remember and quote, but it is a single event. The thing that consumes a printer is the boring average repeated for two years. Our printer duty cycle and print volume sizing guide works through the arithmetic properly.

Zebra S4M specifications

S4M units were built across a long production life in several interface configurations, so we do not quote an interface from the part number alone. We confirm what is physically fitted to the actual unit before it is despatched. If you are replacing a printer that sits on the network, or one that is driven over a serial connection by an older host system, tell us at the point of order and we will match it. Our printer connectivity guide covers why that detail decides whether an install takes ten minutes or a day.

IN STOCK · FUNCTION TESTED

S4M00-2001-0100T – Zebra S4M 4in 203dpi Thermal Transfer / Direct Thermal Industrial Label Printer

SKU: S4M00-2001-0100T | Refurbished & function-tested | Thermal transfer / direct thermal, 203 dpi | 4in print width | ZPL / ZPL II | 30-day warranty

View Details & Request a Quote →

An under-specified printer fails quietly, not loudly

The failure mode of a printer running above its comfortable duty is drift, not breakdown. That is why the diagnosis is so often missed.

What actually happens is a slow sequence. Print darkness becomes slightly uneven across the label width, so someone nudges the darkness setting up. The media tracking wanders by a millimetre, so someone recalibrates. A barcode that always scanned first time now needs a second pass on the handheld, so the operator rescans without thinking about it. A ribbon that used to run clean starts wrinkling on one edge. Each of these is individually trivial and each has an obvious local fix, so the local fix gets applied and the underlying cause never gets named.

Add those up over a quarter and you have a printer that needs attention several times a week, an operator who has learned to work around it, and a stack of labels that fail at the customer end often enough to be annoying but not often enough to trigger an investigation. Nobody writes a fault report saying the printer is undersized. They write nothing at all, because from the inside it simply feels like label printing is a bit fiddly.

The cost is real even though it never appears as a line item. It is minutes of operator time, occasional rescans, wasted media, and the quiet erosion of confidence in the labelling process. When the printhead finally goes, it goes early, and the early failure is treated as bad luck rather than as the predictable endpoint of two years of running hot. Our printhead failure diagnosis and label printer troubleshooting guides cover how to tell a genuine component fault from a duty problem, and ribbon wrinkle diagnosis covers one of the most common early symptoms.

The useful habit is to record the ordinary intervention rate. If a printer needed recalibrating once a month when it was installed and now needs it weekly, that is a measurement, and it is the only early warning you will get.

ZPL and ZPL II mean it drops into an existing Zebra estate

The S4M speaks ZPL and ZPL II, and for most buyers that single fact is the reason the machine gets chosen. If your label formats are already written in ZPL, a printer that speaks ZPL is a swap rather than a project.

This matters more than it sounds. In a mature operation the label formats are not a file someone can regenerate in an afternoon. They are stored templates with fixed field positions, barcode definitions tuned over years, logos and compliance blocks that have been signed off, and host system code that pushes data into named variables. Replacing the printer with one that speaks a different language means rebuilding all of that and then revalidating every label type against every scanner and every downstream system that reads them.

With a ZPL printer, the stored formats do not get touched. The host sends the same command stream it always sent. The label comes out the same size with the same fields in the same places. Testing is a comparison against a known good label rather than a redesign programme.

The same logic applies across a fleet. If every printer in the estate takes the same command language, configuration and firmware can be handled as one exercise rather than machine by machine, and a spare unit on a shelf can replace any of them. Our printer firmware and fleet configuration guide covers running that properly, and identifying printer spare parts covers keeping the right consumables and components against the right models.

Thermal transfer plus direct thermal covers both label lifetimes

The S4M prints both ways, and that removes a decision most operations get wrong at least once. Direct thermal and thermal transfer are not quality tiers. They are different chemistries with different lifespans.

Direct thermal uses heat to darken a coated label. There is no ribbon, so the only consumable is the media, and the output is ideal for anything read within days or weeks: despatch and carrier labels, pick lists, pack labels, date-limited internal tickets. It also fades. Heat, sunlight and abrasion degrade it, and no printer setting changes that.

Thermal transfer melts resin or wax from a ribbon onto the label surface. It costs more per label because you buy a ribbon as well as the media, and the output lasts. Asset tags, rack and bin location labels, equipment nameplates, anything on a shelf in a warm building for five years, anything handled repeatedly: those need transfer printing.

A printer that does both means one machine handles despatch labels in the morning and asset labels in the afternoon without a second unit on the bench, and it means you are not locked out of long-life labelling if the requirement appears later. That flexibility does carry a small operational cost: two media types, and a ribbon to manage as well as labels. Our direct thermal versus thermal transfer guide covers where the line falls, label media and ribbon selection covers matching ribbon to stock, and building an asset labelling scheme covers the long-life side properly.

One practical note on settings. Transfer and direct thermal want different darkness and speed values, and switching between them without adjusting either is a common source of faint output or ribbon wrinkle. Save a profile for each rather than tuning by hand each time, and see print darkness and speed tuning.

Where the S4M fits in a working operation

It suits the operations that print steadily rather than spectacularly. The typical fit is a warehouse despatch bench, a manufacturing line printing part and carton labels, a stores counter producing location and asset labels, or a laboratory or distribution operation that runs a print queue for a block of hours each shift.

It also fits the estate replacement case. A great many S4M units are bought not because someone is choosing a printer from scratch, but because an existing S4M has reached the end of its life and everything around it, formats, mounting, media, spares, operator habits, is built around that machine. In that situation the identical replacement is almost always the cheapest correct answer, and it is worth deciding on condition and risk rather than on age alone, which is what hardware refresh timing on risk not age is about.

Above this class sit the genuinely heavy machines. If you are printing at production volume, running wide labels, or feeding an applicator on a line, look at a full industrial unit such as the Zebra 140Xi4, the Datamax H-Class, the Printronix T8000, the Honeywell PX4iE or the compact Honeywell PD45S. How the printer presents finished labels also matters at that end of the range, and printer media handling modes covers tear-off, peel and rewind.

When a heavier desktop printer is the better buy

If your volume genuinely is intermittent, do not buy this printer. A heavier desktop unit is the correct answer and it is correct on several counts at once.

It costs less to buy. It takes less bench space, which is not a trivial consideration when the printer has to live at a packing station alongside a scanner, a scale and a screen. Its consumables and spares are cheaper. And a genuinely burst workload never touches the part of the duty envelope you would be paying the industrial machine for, so the extra capability sits idle.

The honest test is the one from earlier. If nothing in a normal shift is an unbroken run of more than a few minutes, and the total is a few hundred labels spread across the day, you have a desktop workload. Something in the 7 to 8 lb bracket such as the Citizen CL-S521II covers that comfortably, with more chassis than an entry-level unit and none of the footprint or cost of an industrial one.

What should push you up to the S4M is one of three things: a sustained print block of an hour or more, a duty that runs all day even if the hourly rate looks modest, or an environment that a plastic-shelled printer will not survive, meaning dust, vibration, heat or simply being in the way of a forklift aisle. If none of those apply, the mid-weight class is capacity you are buying and not using.

Buying it refurbished: what to check

Industrial printers refurbish well because the frame and mechanism are the parts built to last and they are rarely the parts that fail. The wear concentrates in a small number of components, and those are the ones to ask about.

The printhead. A consumable rated in length of media printed, not in years. A failing head prints a thin unprinted line down the length of every label, which is burnt-out elements rather than dirt, and no amount of cleaning recovers it. Ask what condition the head is in and whether it has been replaced. See thermal printhead replacement.

The platen roller. The rubber roller that drives the media. Flat spots, hardening and adhesive build-up cause tracking drift and uneven darkness, and this gets misdiagnosed as a printhead fault more often than anything else in thermal printing.

The media path and sensors. On an industrial printer these have usually had years of dust and adhesive passing through them. Gap and ribbon sensors that have gone out of tolerance produce intermittent calibration faults that look like a host or format problem.

Then confirm what is actually in the box. Power cable, interface cable, media spindle and ribbon spindles go missing from refurbished listings routinely across this market, and a thermal transfer printer without its ribbon spindles is not a working thermal transfer printer. We function-test and print-test every unit and state plainly what is fitted and what is included. See refurbished hardware grading explained and thermal printer maintenance.

Ordering

We supply S4M00-2001-0100T refurbished and function-tested with a 30-day Tech Seller USA warranty, singly or in quantity. Tell us your label size, what is printed on it, whether you need thermal transfer or direct thermal or both, the longest unbroken print run in a normal shift, and the interface the unit has to match, and we will confirm the configuration before you order. Connectivity is confirmed on the actual unit before despatch. Browse our Zebra range or the full printers and scanners catalogue. If you are standardising a fleet, see managing label consumables and spares.

Common questions

Send us your label size, what is printed on it and the longest unbroken print run in a normal shift, and we will confirm the right configuration before quoting.
