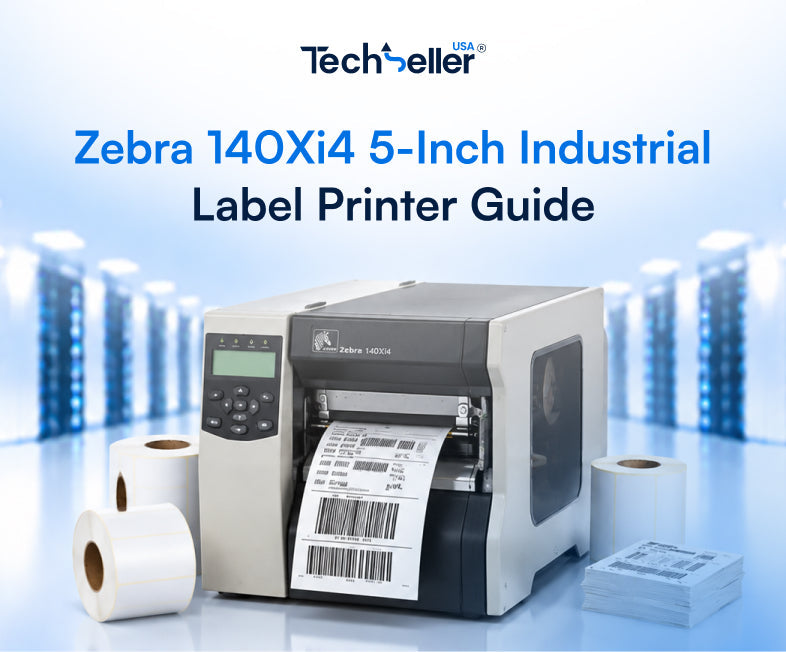

Zebra 140Xi4 5-Inch Industrial Label Printer Guide

Four inches is not a print width. It is a convention. Carrier shipping labels are four inches wide, warehouse management systems assume four inches, and so almost every label printer built in the last twenty years stops at four inches because that is where the volume is. The convention is so complete that most buyers never think of print width as a specification at all.

The Zebra 140Xi4 exists because some labels do not fit. It is an industrial thermal transfer and direct thermal printer with a 5 inch maximum print width at 203 dpi, in a 55 lb metal chassis, supplied here as part numbers 140-801-00000 and 140-801-00100 in refurbished, function-tested condition. The extra inch is the whole point of the machine, and it is worth understanding exactly what that inch does before deciding whether you need it.

Why four inches became the default, and what that default hides

Four inches became the standard because carrier shipping labels standardised on it, and shipping labels are the single highest-volume label application in existence. Once the carriers fixed the format, printer manufacturers optimised around it, media converters stocked it, and ribbon widths followed. The result is a market where four inches is cheap, available everywhere and supported by every driver and label template you will ever meet.

What that default hides is that a large part of industrial labelling was never a shipping label. Chemical drums, pallet placards, regulated product panels and multi-language compliance labels were all sized by regulation or by the physical object, not by a carrier's print spec. Those labels did not shrink to fit the printer market. They stayed the size they had to be, and the operations printing them either bought a wide printer or split the label across two passes and hoped the join looked acceptable.

So print width is one of the few specifications where the question is genuinely binary. A printer either clears the label or it does not. There is no tuning, no firmware setting and no media trick that makes a four inch head print a five inch label. If you are in the group that needs more than four inches, a four inch printer is not a compromise, it is simply the wrong machine. Our industrial versus desktop label printers guide covers the wider class distinction that sits underneath this.

What actually needs more than four inches

A fairly short list of applications drives almost all demand for print width above four inches, and it is worth checking your own output against it honestly.

Drum and chemical container labels. Chemical labelling is sized by the container, and drum labels are wide by design so the hazard information is readable from a distance and around the curve of the drum. These are rarely four inch labels.

Large GHS hazard panels. GHS labels carry pictograms, signal words, hazard statements and precautionary statements together in one panel. On larger containers the required panel size pushes past four inches quickly, particularly once the pictograms are at the size the regulation expects rather than the size that happens to fit.

Pallet and unit load labels. Pallet labels carry large human-readable text and large barcodes because they are scanned from a distance by a forklift operator or a fixed scanner. Scale the barcode up so it reads reliably and the label gets wide.

Multi-language compliance labels. A product sold into several markets often needs the same regulatory text repeated in two or three languages on one panel. Each language block is a column, and columns add width.

Wide product and packaging labels. Cartons, sacks, buckets and shelf-ready packaging are labelled to the face of the pack. The pack width sets the label width, and nobody designed the pack around a printer.

Two-up and three-up printing of narrow labels. This is the one most buyers do not consider, and it is covered in its own section below because it changes the economics rather than the capability.

If your work sits in the chemical, industrial manufacturing or regulated packaging space, you probably recognised at least two of those. If it does not, keep reading to the counterpoint section, because the honest answer may be that you do not need this printer.

Zebra 140Xi4 specifications

Both part numbers are the same model and the same print width. They are two configurations of one machine, and the second one is listed separately as 140-801-00100. Interface fitment is not recorded against these units on paper, so we confirm connectivity on the actual unit before despatch rather than quoting it from a catalogue. Tell us what the printer has to connect to and we will check the physical ports on the machine being despatched. Our printer connectivity guide explains why that matters more on industrial units than on desktop ones.

IN STOCK · FUNCTION TESTED

140-801-00000 – Zebra 140Xi4 5in 203dpi Thermal Transfer / Direct Thermal Industrial Label Printer

SKU: 140-801-00000 | Refurbished & function-tested | Thermal transfer / direct thermal, 203 dpi | 5in print width | 30-day warranty

View Details & Request a Quote →

Two-up printing is the underrated reason to buy width

The strongest argument for a wide printer is often not that your labels are wide, but that you print a lot of narrow ones. Throughput is a function of labels per pass, not only of inches per second.

If you print a narrow label, say a small product or shelf label, a four inch printer prints them one at a time down a single web. A five inch printer running the same label on two-up or three-up media prints two or three of them side by side in the same pass. The media moves at the same rate, the printhead does the same work per inch of travel, and you finish the run in a fraction of the time. That is a throughput gain you cannot get by buying a faster four inch printer, because it comes from geometry rather than speed.

The same logic cuts the cost of a long run in other ways. Fewer media changes per thousand labels, fewer roll ends, less operator attendance and less printhead travel per label printed. On a continuous shift that adds up more than most people expect when they are comparing printers on a spec sheet.

There are two conditions. First, the labels have to be converted two-up or three-up on the roll, which is a conversion job, not something you do with standard stock. Second, the print position has to be right across the full width, because a two-up layout doubles the consequence of any drift. See label print position and offset calibration before committing a production run to multi-up media, and printer media handling modes for how the take-up and sensing behaviour changes.

Wide media costs more and has its own supply chain

Confirm your media supply before you commit to a wide printer. This is the single most common way a width purchase goes wrong.

Four inch label stock and four inch ribbon are commodity items. Every converter holds them, lead times are short, and competitive pricing is easy to get. Wider stock is a different market. Fewer converters carry it, the roll costs more per unit area, minimum order quantities are often higher, and lead times are longer. If you are running a specialist face stock, a synthetic material or a chemical-resistant label, the wide version of it may be a made-to-order item rather than a shelf item.

Ribbon follows the same pattern and adds a rule of its own. Thermal transfer ribbon should be at least as wide as the media it prints on, so a wider printer means wider ribbon, and ribbon is usually the larger recurring spend of the two. Work out your consumable cost per label at the wide format before you compare printer prices, because a machine that is cheaper to buy can be more expensive to run for years. Our label media and ribbon selection guide covers matching ribbon to face stock, and managing label consumables inventory covers holding the right stock without tying up cash.

Wider media is also less forgiving in the transport. A wide web tracks less predictably than a narrow one, and tension differences across the width are what produce ribbon wrinkle, which shows as diagonal unprinted streaks. It is a setup and tension problem rather than a fault, but it appears more readily at width. See ribbon wrinkle diagnosis.

The printhead is wider, so it is a more expensive consumable

A five inch printhead costs more than a four inch printhead, and it is still a consumable. That is the second recurring cost of width and it needs to be in the sizing calculation from the start.

A thermal printhead wears with the length of media printed across it, the abrasiveness of the face stock and the darkness setting used. None of that changes with width. What changes is the replacement cost when the head reaches the end of its life, because there is simply more head to replace. An operation that gets through printheads on a predictable cycle should price that cycle at the wide format rather than assuming the figure it knows from its four inch fleet.

The practical control is the same as it always is: run the lowest darkness that produces a scannable, legible label, keep the head clean, and use media that suits the head rather than media that is cheapest per roll. Raising darkness to compensate for poor media shortens head life on any printer and shortens an expensive head faster. See print darkness and speed tuning, printhead failure diagnosis and the printhead replacement guide.

Why wide-web continuous duty needs 55 lbs of metal

The 140Xi4 weighs 55 lbs because a wide web under tension needs a frame that does not move. That weight is a functional requirement, not packaging.

Everything gets harder as the web gets wider. The media path has to hold the stock flat and square across a greater distance, the printhead has to apply even pressure along its full length, and the ribbon has to run without creasing across the same width. Any flex in the chassis shows up as tracking drift, uneven print density across the label, or wrinkle. A light plastic-framed printer can be perfectly good at four inches and simply not have the structural rigidity to hold a wide web steady through a long continuous run.

Weight also tracks duty. A metal-framed industrial printer is built for continuous shift work with serviceable subassemblies, which is a different design goal from a desktop machine that prints in bursts. If you are sizing a printer to a workload rather than to a label, read printer duty cycle and print volume sizing first. Other industrial machines in the same class are covered in our Printronix T8000, Honeywell PX940 and Datamax H-Class guides.

Thermal transfer and direct thermal on one machine

The 140Xi4 runs both print methods, which matters more at this end of the market than it does on a desktop printer, because wide labels are usually the ones that have to survive something.

Direct thermal uses heat-sensitive stock with no ribbon. It is the cheaper and simpler mode, and it suits labels that are read within days or weeks. Thermal transfer melts ribbon onto the face stock and produces a durable mark that holds up to heat, light, solvents and abrasion when the ribbon and face stock are matched properly. Drum labels, chemical labels, outdoor pallet labels and anything with a regulatory life are thermal transfer work, and that is most of what a five inch printer is bought for. Our direct thermal versus thermal transfer guide sets out where the line falls.

Having both on the same machine means one printer can cover a durable chemical label and a short-life internal label without changing hardware, which is useful when the wide printer is a single shared asset rather than one of a fleet.

The honest counterpoint: when width buys you nothing

If everything you print fits on four inches, this printer gives you no benefit at all. That needs saying plainly, because width is easy to buy as insurance and it is expensive insurance.

A four inch industrial printer will generally cost less to buy, use cheaper and more widely available media, take a cheaper printhead, and sit in a smaller footprint. If your output is carrier shipping labels, standard pick labels, carton labels within four inches and general warehouse labelling, that is the right machine and the money saved is real and recurring.

The test is simple. Measure the widest label you actually print today, add whatever the next twelve months are likely to bring, and check whether multi-up printing would meaningfully cut your run times. If the answer to both is no, buy four inches. Width is worth paying for when a specific label demands it or when two-up throughput pays for it, and not otherwise.

Buying a 140Xi4 refurbished: what to check

Industrial printers refurbish well because they were built to be serviced, but there are specific things to establish on a wide machine.

Printhead condition. The most expensive single consumable and more so at this width. A worn head prints a persistent unprinted line down the length of every label, which is failed elements rather than dirt, and cleaning does not recover it. On a wide head the fault can also appear as density falling off toward one end.

Platen roller and media path. The rubber roller drives the web, and flat spots, hardening or adhesive build-up cause tracking drift and inconsistent density. At five inches this shows up sooner than it would on a narrow machine, and it is misdiagnosed as a printhead fault more often than anything else in thermal printing.

Interface fitment. Because connectivity is not recorded against these units, this has to be confirmed physically. We check the ports on the actual machine before despatch and tell you what is fitted.

Spares availability. Before standardising on any older industrial platform, establish that the wear parts are still obtainable. See identifying printer spare parts, refurbished hardware grading explained and thermal printer maintenance. For fleet work, printer firmware and fleet configuration covers keeping settings consistent across units, and label printer troubleshooting covers the day-to-day faults.

Ordering

We supply the 140Xi4 refurbished and function-tested with a 30-day Tech Seller USA warranty, under part numbers 140-801-00000 and 140-801-00100, singly or in quantity. Tell us your widest label size, the face stock and ribbon you use, your daily volume and what the printer has to connect to, and we will confirm the configuration and the physical interfaces on the unit before despatch. Browse the full Zebra range or the wider printers and scanners catalogue.

If you are replacing a machine that is already in production, send us the label artwork and the current media specification as well. Width is easy to check on paper and easy to get wrong in practice, and it costs nothing to confirm before you order.

Common questions

Send us your widest label size, the face stock and ribbon you run and your daily volume, and we will confirm the right configuration before quoting.
